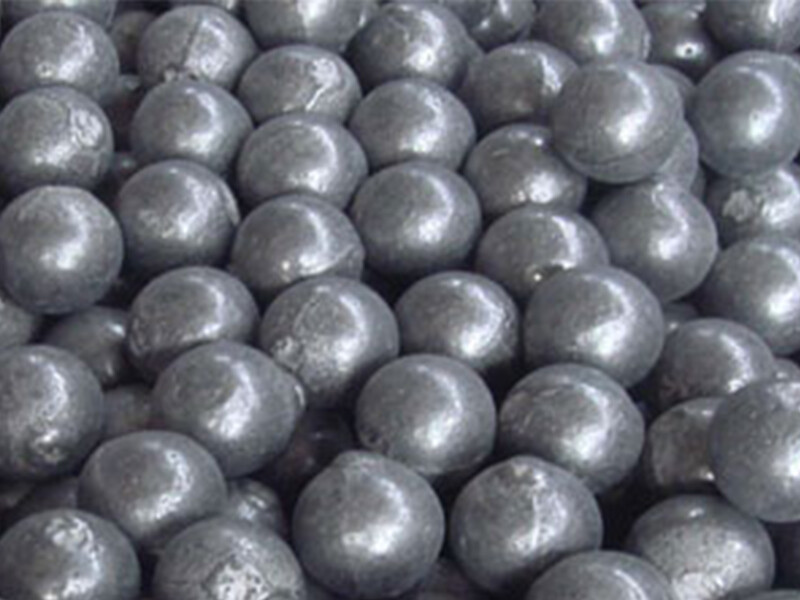

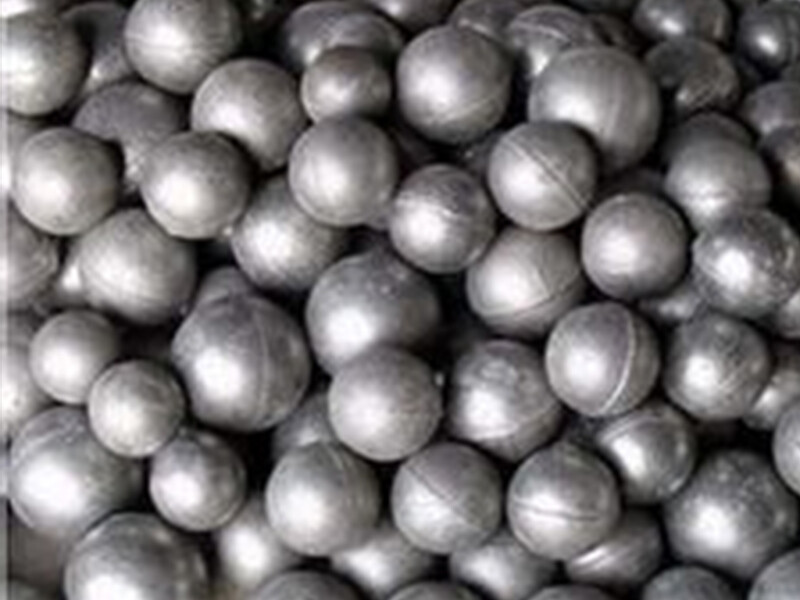

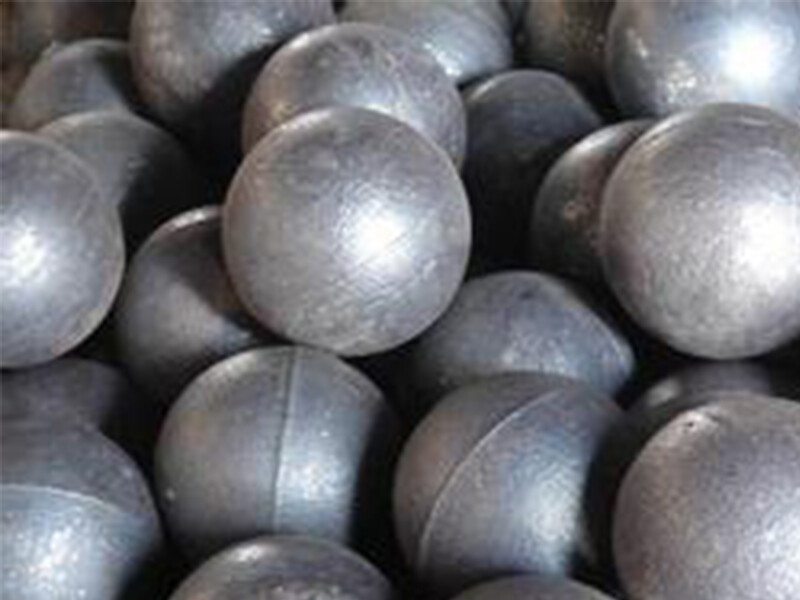

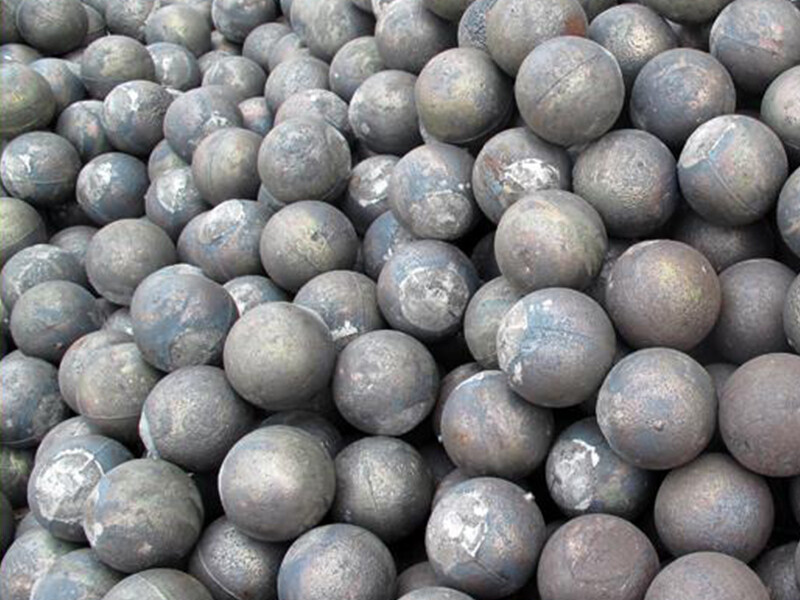

Casting Balls
Is made of a fluid melt into a mold, so that the shape of the sphere is cooled, the four main elements are required in the casting process: pattern, mold, core, and part of the original template, created from the corresponding cavity in the casting material. The core is used to manufacture a pipe or hole in the final mold, which is the final output of the process. Casting can be used to form heat, liquid metal. The abrasive medium is subjected to heat treatment to achieve the combination of hardness, toughness and microstructure required to ensure the wear resistance and toughness of the composite.
MESSAGE
EMAIL
Product Description

Is made of a fluid melt into a mold, so that the shape of the sphere is cooled, the four main elements are required in the casting process: pattern, mold, core, and part of the original template, created from the corresponding cavity in the casting material. The core is used to manufacture a pipe or hole in the final mold, which is the final output of the process. Casting can be used to form heat, liquid metal. The abrasive medium is subjected to heat treatment to achieve the combination of hardness, toughness and microstructure required to ensure the wear resistance and toughness of the composite.


MECHANICAL PROPERTIES

Items  Brand（HRC）Surface hardness Endurance impact test(Times)
 Quenched Unquenched
 High chrome casting iron ball JCCr20  ≥56  ≥45  ≥8000
 High chrome casting iron ball JCCr15  ≥56  ≥45  ≥8000
 High chrome casting iron ball JCCr13  ≥56  ≥49  ≥8000
 Middlechrome casting iron ball  JCCr7  ----  ≥48  ≥8000
 Low chrome casting iron ball JCCr2  -----  ≥45  ≥8000
 Bainite ductile casting iron ball JCsi3 ≥50 ----- ≥8000

Product performance: 1) the hardness of 2) is not broken 3) the impact value of 4) the impact of high 5) the comprehensive efficiency of the mill is high.


SIZES OF CASTING BALLS

Items  SZES
Φ17Φ20Φ25Φ30Φ40Φ50Φ60Φ70Φ80Φ90Φ100Φ110Φ120Φ130
Tolerance   +1.0 -1.0+2.0-1.0+3.0-10.+3.5-1.5
  Difference between maxDiam and min diam  ≤ 1.0   ≤ 2.0   ≤ 3.0   ≤ 4.0


 High Chrome Casting Grinding Ball

ItemChemical  Composition(%)
CSiMnCrPSMoCuNi
High chrome cast grinding balls ZQCr122.0-3.00.3-1.20.2-1.011-13≤0.10≤0.100-1.00-1.00-1.5
ZQCr152.0-3.00.3-1.20.2-1.014-17≤0.10≤0.100-1.00-1.00-1.5
ZQCr202.0-2.80.3-1.00.2-1.018-22≤0.10≤0.080-2.50-2.00-1.5
ZQCr262.0-2.80.3-1.00.2-1.022-28≤0.10≤0.080-2.50-2.00-1.5
Middle chrome cast grinding balls ZQCr72.0-3.20.3-1.50.2-1.06.0-10≤0.10≤0.080-1.00-0.80-1.5
Low chrome cast grinding balls ZQCr22.0-3.60.3-1.50.2-1.01.0-3.0≤0.10≤0.080-1.00-0.8--
Bainite ductile cast grinding balls ZQsi33.2-3.82.0-3.52.0-3.0--≤0.10≤0.08------

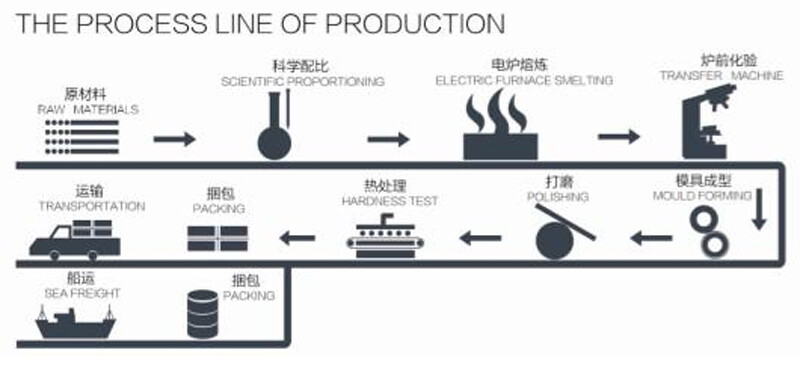

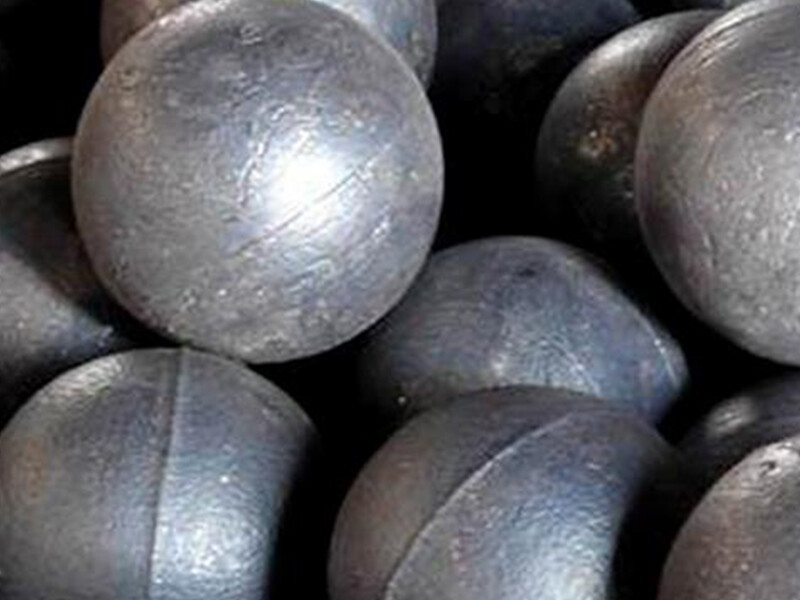

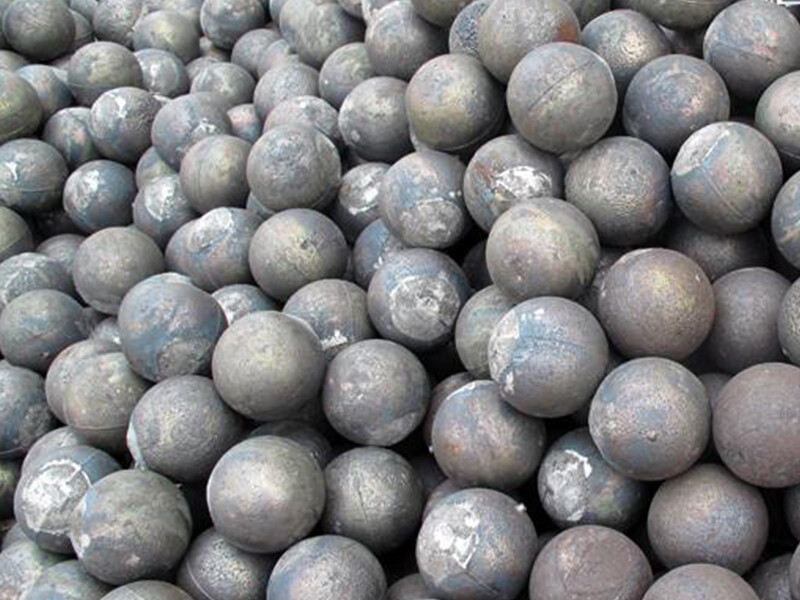

Casting balls.jpg



Application areas

cement building materials, mining and metallurgy, coal chemical industry, coal chemical machinery and other industries.

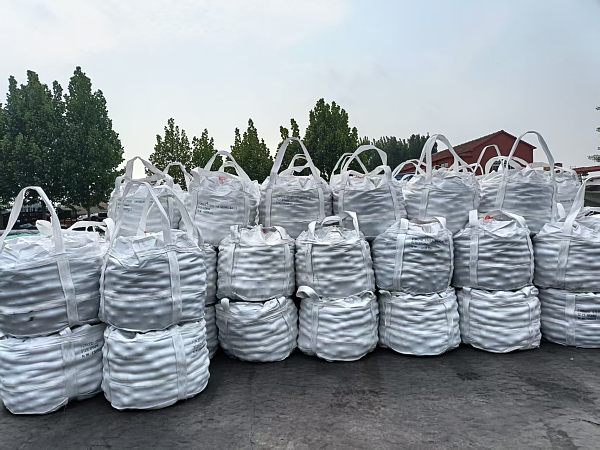

Packing

ton bag (1000KG) (850-900KG).

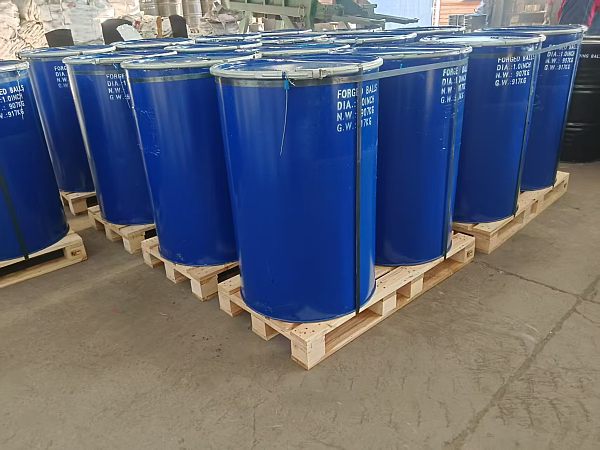

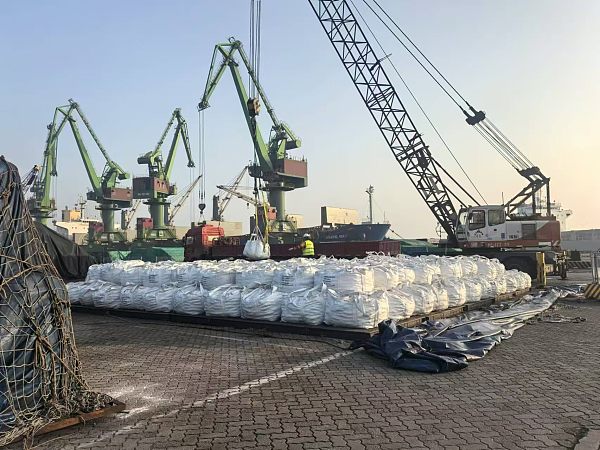

Product Packaging Display

Jinan Gaosheng CNC Technology Co.,LTD, established in 2009, is located in Zhangqiu City, Shandong Province with convenient transportation conditions. Professional sales and export of grinding ball production line, the main products are machine, cutting machine and the rolling ball to provide high quality products, perfect pre-market after-sales service system, let the Goldman sachs have a fixed customer base.Products are exported to Australia, South Korea, and other countries.
