Grinding Cylpebs
After special heat treatment, our steel forgings achieve good properties, such as high hardness, martensite or bainite structure, good wear resistance, etc.
[Product Specifications] Φ8*10 - Φ50*60
[Scope of Application] Widely used in ferrous and non-ferrous metal mines, chemicals, new building materials, refractory materials, fertilizers, cement, silicate products, glass and ceramics and other production industries.
[Product Introduction] Our company adopts fully automated production lines for steel forgings, which improves the degree of automation and production efficiency, and has strict process control, which can well improve and stabilize the quality of products. The internal organization is evenly distributed and has good abrasiveness. Abrasion: The abrasion value of cement plants is about (30-60) grams/ton.
MESSAGE
EMAIL
Product Description

After special heat treatment, our steel forgings achieve good properties, such as high hardness, martensite or bainite structure, good wear resistance, etc.

[Product Specifications] Φ8*10 - Φ50*60

[Scope of Application] Widely used in ferrous and non-ferrous metal mines, chemicals, new building materials, refractory materials, fertilizers, cement, silicate products, glass and ceramics and other production industries.

[Product Introduction] Our company adopts fully automated production lines for steel forgings, which improves the degree of automation and production efficiency, and has strict process control, which can well improve and stabilize the quality of products. The internal organization is evenly distributed and has good abrasiveness. Abrasion: The abrasion value of cement plants is about (30-60) grams/ton.


Specification of Grinding Cylpebs

Size Nominal diameter x length (mm)

Dia Tolerance（mm）

Out Of Round%

Length Tolerance（mm）

Surface hardness

Φ20*25

+1.2/-1.0

≤5

+1.5/-1.5

≥60

Φ25*30

+1.5/-1.5

≤5

+2.0/-2.0

≥60

Φ25*35

+1.5/-1.5

≤5

+2.0/-2.0

≥60

Φ30*35

+1.5/-1.5

≤5

+2.0/-2.0

≥60

Φ30*40

+1.5/-1.5

≤5

+2.0/-2.0

≥60

Φ35*40

+2.0/-2.0

≤5

+2.5/-2.5

≥60

Φ35*45

+2.0/-2.0

≤5

+2.5/-2.5

≥60

Φ40*50

+2.0/-2.0

≤5

+2.5/-2.5

≥60

Φ45*55

+2.0/-2.0

≤5

+2.5/-2.5

≥60

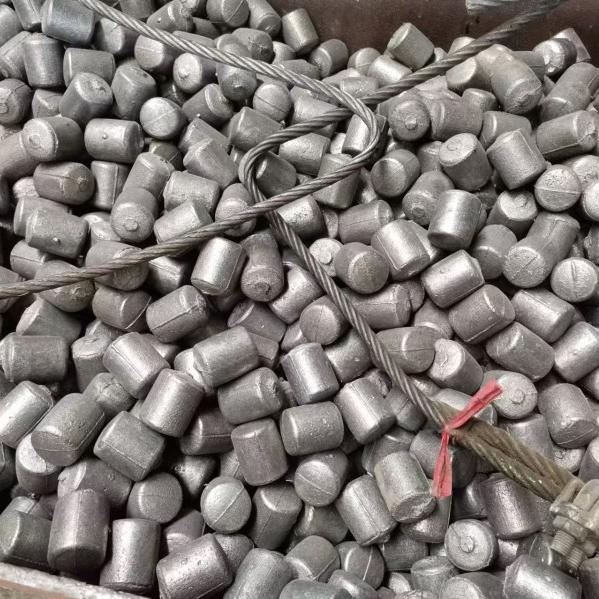

Product Packaging Display

Jinan Gaosheng CNC Technology Co.,LTD, established in 2009, is located in Zhangqiu City, Shandong Province with convenient transportation conditions. Professional sales and export of grinding ball production line, the main products are machine, cutting machine and the rolling ball to provide high quality products, perfect pre-market after-sales service system, let the Goldman sachs have a fixed customer base.Products are exported to Australia, South Korea, and other countries.
